Subsurface Pressure-Compensating Drip Emitter

Emitter Features:

1. Pressure Compensation:

• Equipped with automatic adjustment to maintain stable flow output within a certain pressure range, ideal for complex terrains and long layouts in agricultural applications.

2. High Performance & Robustness:

• Emission uniformity index less than 0.05, providing stable flow across a wide pressure range and simplifying system design for various terrains like slopes and valleys.

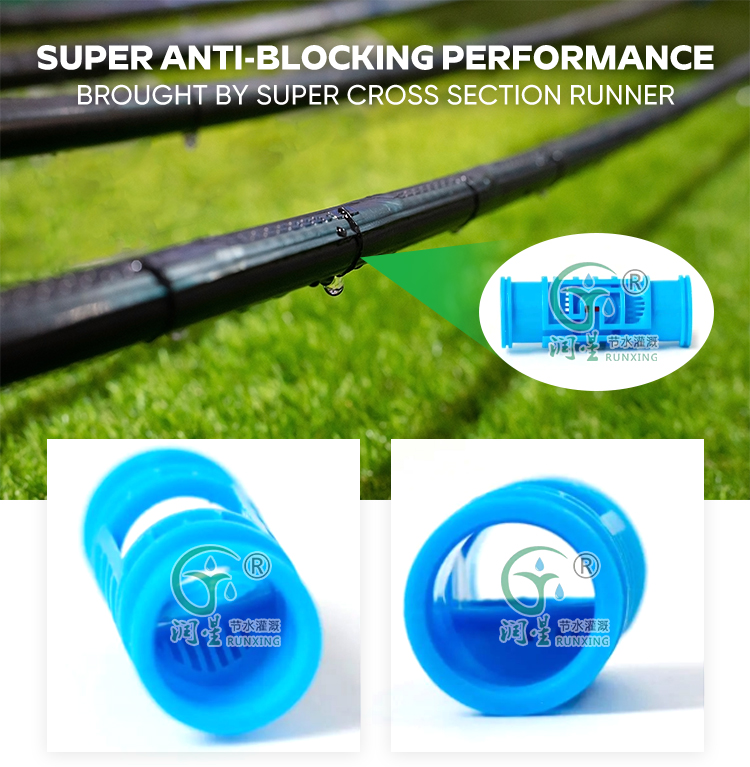

3. Self-Cleaning & Anti-Clogging Design:

• Features a self-cleaning silicone diaphragm and large-section labyrinth path to prevent impurity clogging and ensure consistent performance.

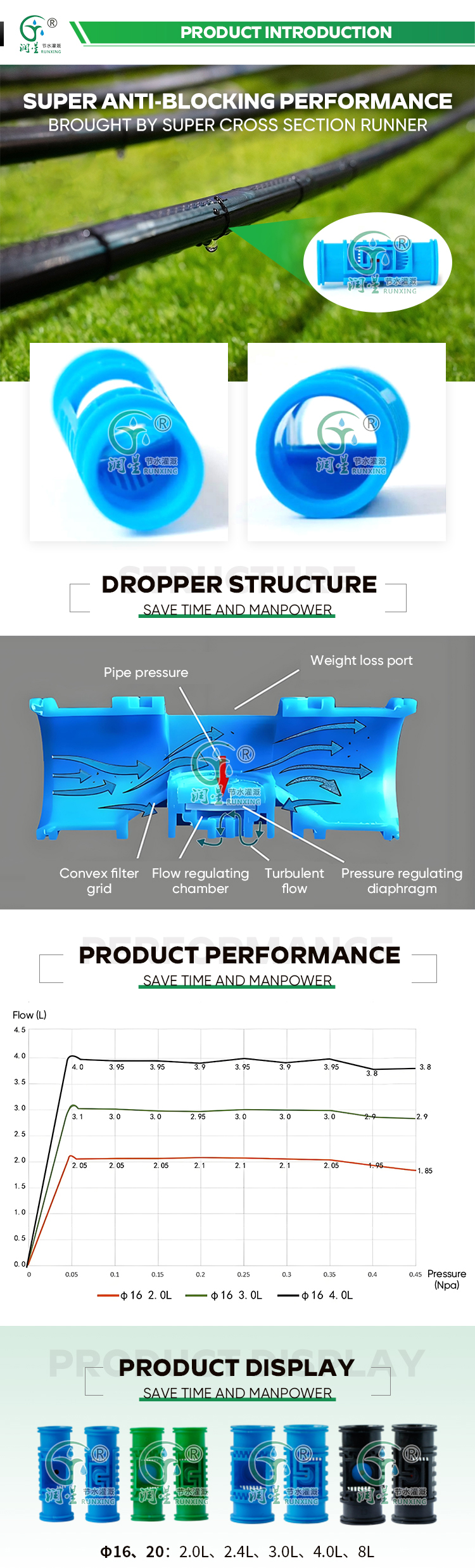

4. Boss Dual-Filter & Optimized Design:

• The boss dual-filter design utilizes high water flow velocity to keep the filter surface clean. The filter inlet structure prevents impurity deposition during circulation.

• Additionally, the emitter's weighted design ensures consistent orientation when embedded in drip irrigation tubes, aligning water inlets uniformly. With the tube's marking line, the inlet can be positioned at the top to avoid negative pressure suction of mud during water shutdown.

5. Premium Material & Durability:

• Made of high-quality pure raw materials, resistant to UV degradation, common chemicals, and fertilizers, ensuring stability and durability in use.
